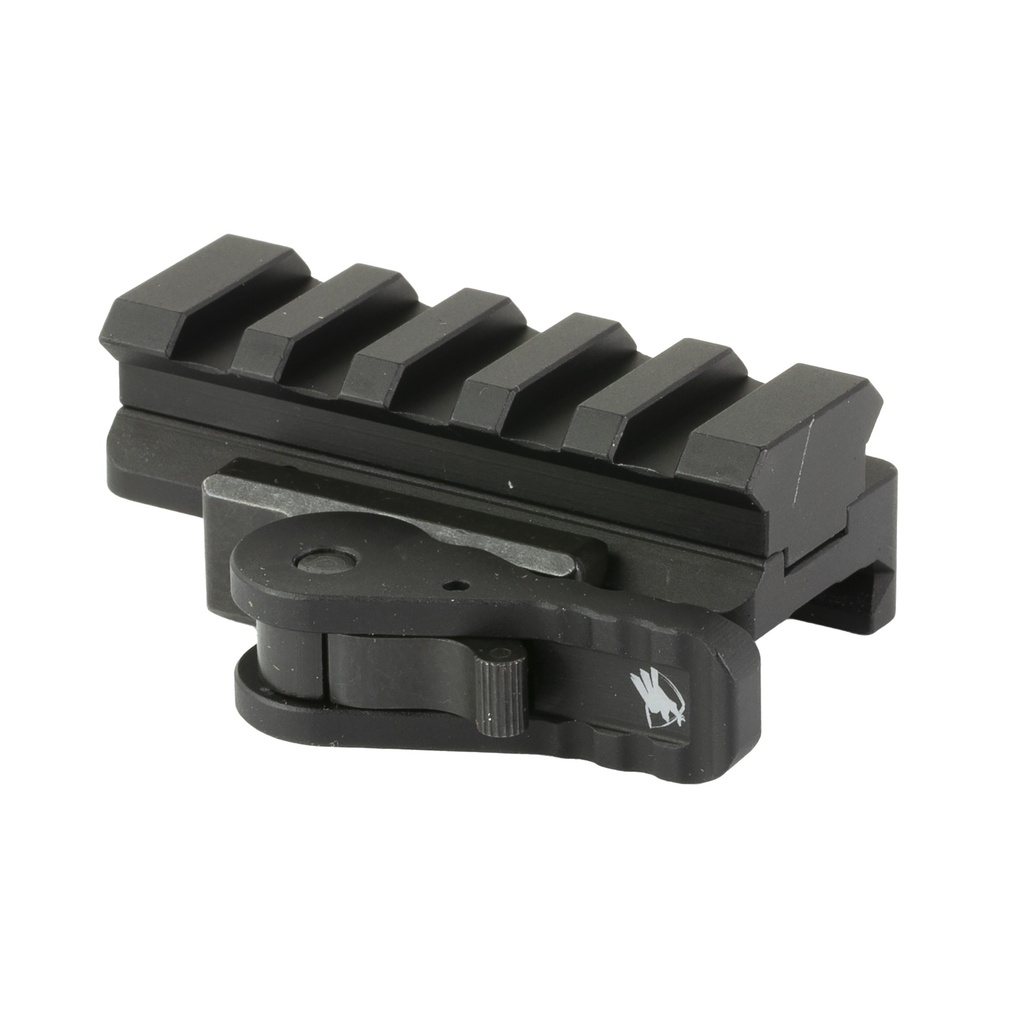

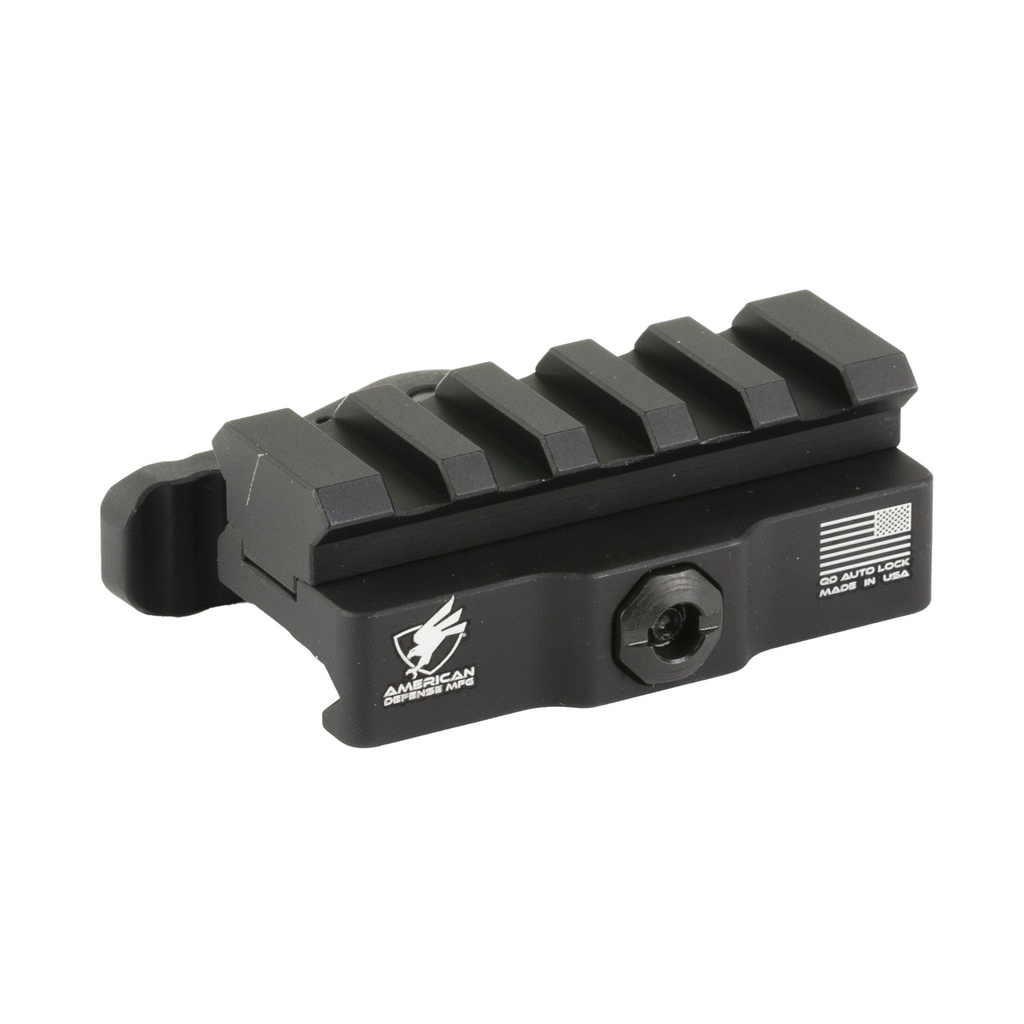

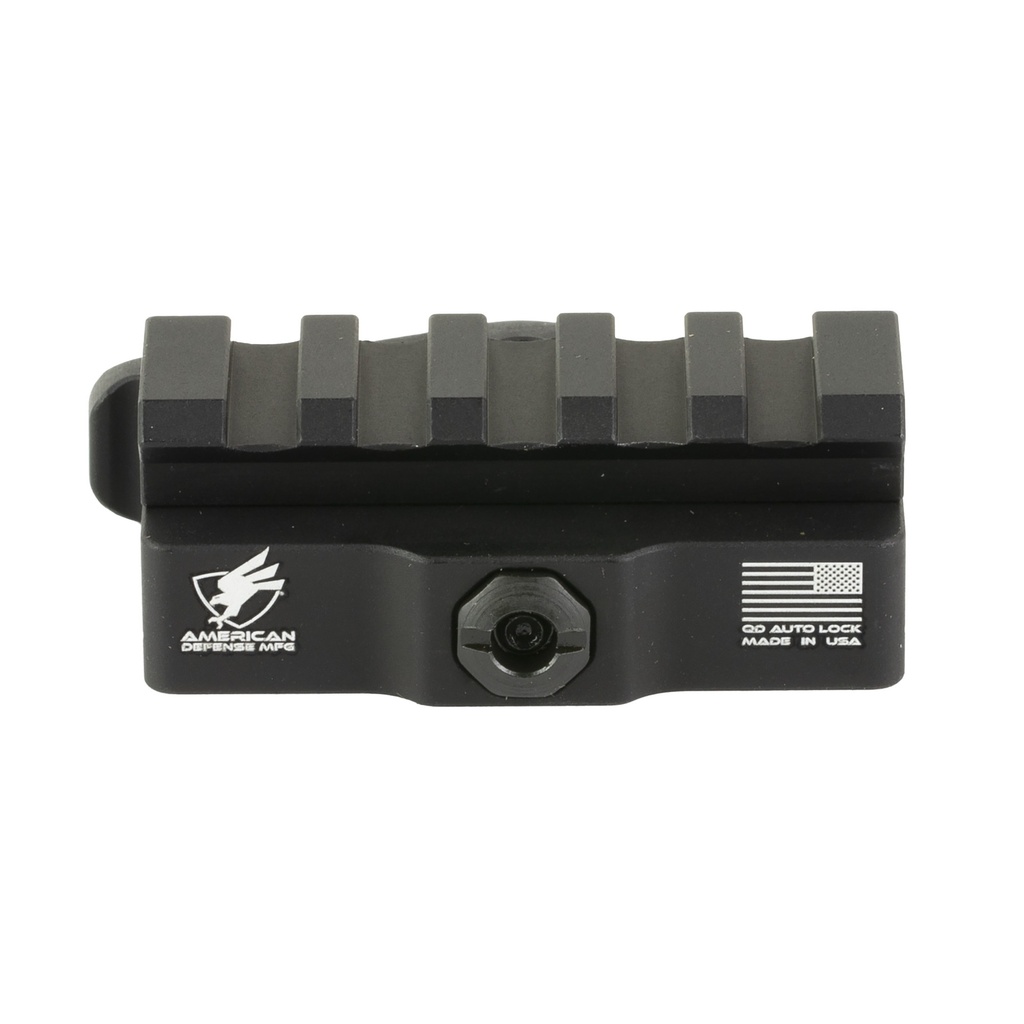

The AD-170-VPG provides a QD solution for a picatinny rail, offering a .60" rise above the mounting surface. Overall length is 2.3". It accepts all VPG bolt on rails that come in both 3 lug and 5 lug variations. It is precision machined from 6061 T6 aluminum and finished in hard coat T3 Mil-Spec anodize. It features the Patented QD Auto Lock Lever system to accommodate both in spec and out of spec rail systems.
Specifications:
- Does not require proprietary tools for adjustment
- Can be adjusted with your finger or a flat blade screwdriver
- Lever can be configured to lock to the front or the rear
- Precision machined from 6061 T6 Aluminum
- Hard coat anodized for a lifetime of performance
- Fully adjustable to fit both in spec and out of spec rail systems
- 0.60 Height"
